BX-FH019 Integrated Twin-Head Red Exit Sign with 3-Hour Backup

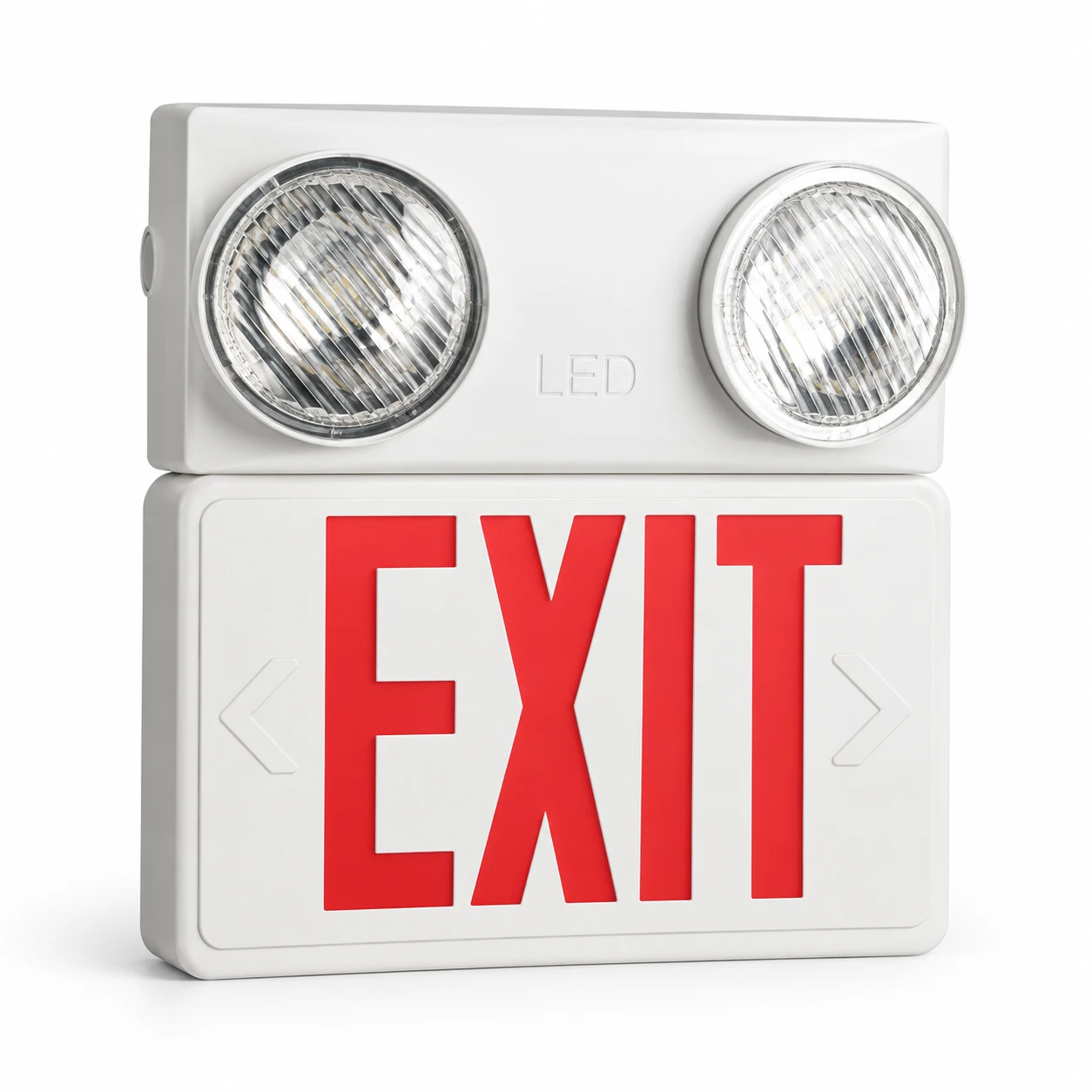

The BX-FH019 integrated twin-head red exit sign combines an EXIT panel with two round emergency lamps housed in a rectangular upper module. Unlike fixtures with lamps on exposed stems, this model keeps the two lamp faces within a defined upper housing. The lower panel carries large red EXIT lettering on a white background, giving distributors and contractors a clearly identifiable combination product for indoor commercial project enquiries.

The catalogue specifies a three-hour emergency duration, an 85–265V input range and a 3.7V 2200mAh battery. Rated power is listed as 2W + 2 × 1.5W, and overall dimensions are 305 × 52 × 340 mm. Use these values to compare the model with your project schedule, available mounting space and required backup specification before requesting samples or a bulk quotation.

Four Key Features

1. Integrated upper lamp module. Two circular lamp faces sit within the front of the upper rectangular housing. This arrangement gives BX-FH019 a different profile from freestanding top-head or side-head units. It is useful when a purchasing specification calls for a stacked sign-and-light configuration with a consistent rectangular outline.
2. Red EXIT identification. The lower white panel displays tall red EXIT letters. The catalogue image also shows subtle chevrons beside the lettering. Confirm the supplied directional configuration and required legend when ordering; the photograph alone does not establish how those features are configured for a particular installation.
3. Three-hour emergency rating. The stated battery is 3.7V 2200mAh, with three hours of emergency operation listed in the catalogue. Include both ratings in the purchase specification. Charging conditions, operating procedures and the appropriate testing routine should be reviewed against the documentation supplied with the product.
4. Defined installation footprint. The complete unit measures 305 mm wide, 52 mm deep and 340 mm high. Check the full stacked housing dimensions against the planned location, including clearance around the fixture and access for installation. This avoids choosing a product based only on the EXIT panel size.

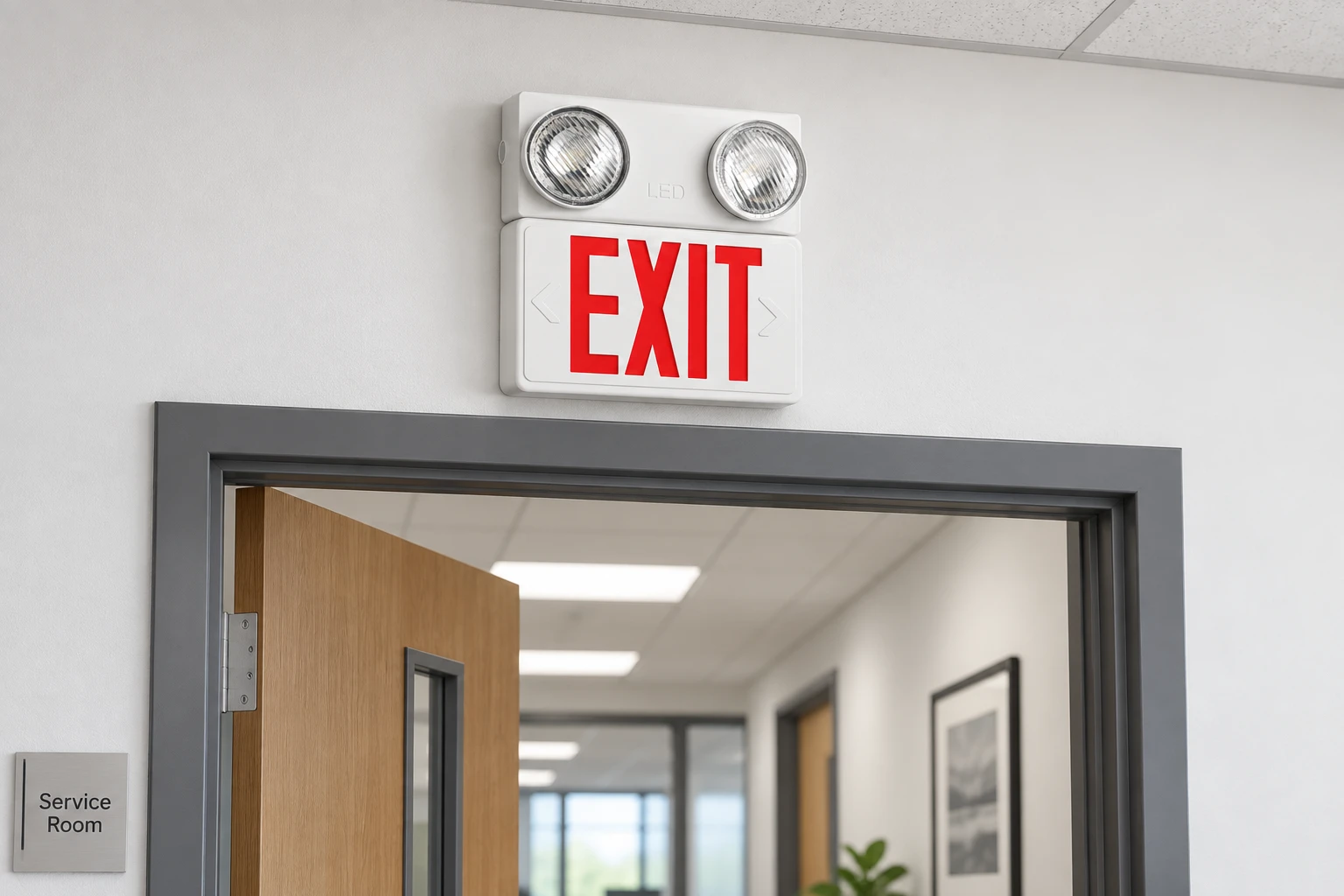

Commercial Doorway Application

Technical Specifications

Where to Consider This Combination Exit Sign

BX-FH019 is a candidate for indoor commercial lighting projects requiring a red exit sign together with nearby emergency illumination. Typical enquiry settings include office circulation areas, hotel service corridors, retail back rooms and access points along a planned exit route. The building layout, viewing direction and lighting design determine whether this particular configuration is appropriate.

For refurbishment projects, record the existing fixture dimensions and the available space above or beside the doorway. The upper lamp housing adds height that must be considered when comparing replacements. For new projects, include a product photograph and the complete dimensions in the equipment schedule so the buyer and installer can identify the intended form without relying on a generic description.

Specification Support for B2B Buyers

A clear enquiry helps separate BX-FH019 from other twin-head exit signs with similar electrical ratings. State the model number, red lettering, integrated upper lamp module and required order quantity. If the project involves several buildings, specify quantities by location and confirm whether each site requires the same legend and configuration. This makes model comparisons and order discussions more precise.

The published table below the application image reproduces the core catalogue ratings. If your project also requires a particular certification, enclosure rating, light output, mounting accessory or testing function, request supporting information for the exact supplied version. These additional characteristics should not be inferred from the appearance of the product or from another model in the range.

Sample Evaluation and Repeat Orders

Before confirming a larger order, compare a sample with the approved reference photograph and check the housing, lens arrangement and EXIT panel appearance. Review the supplied installation information with the responsible project team. Keep a record of the accepted configuration so future deliveries can be compared with a specific product reference, especially where procurement takes place in separate phases.

Discuss packaging, destination and delivery requirements as part of the quotation request. For replacement programmes, provide photographs and measurements of the existing position when available. These practical details help identify fit-related questions before an order is finalized and reduce ambiguity between visually similar emergency lighting products.

Purchasing Questions

How does BX-FH019 differ from BX-FH018? BX-FH019 places its two lamps inside an upper rectangular module. BX-FH018 has separate round heads on stems above the sign. Their depth measurements also differ, so each model should be reviewed against the intended installation position.

What should be included in a quotation request? Send the model, quantity, destination country and intended application. Add any sample requirements, project documents and required delivery date so the response can address the configuration you need.

Request a BX-FH019 Quotation

Contact Best Emergency Light to discuss BX-FH019 samples, bulk supply and commercial project requirements. Include the model number in your message for a focused product enquiry.

Request a Product Quotation
