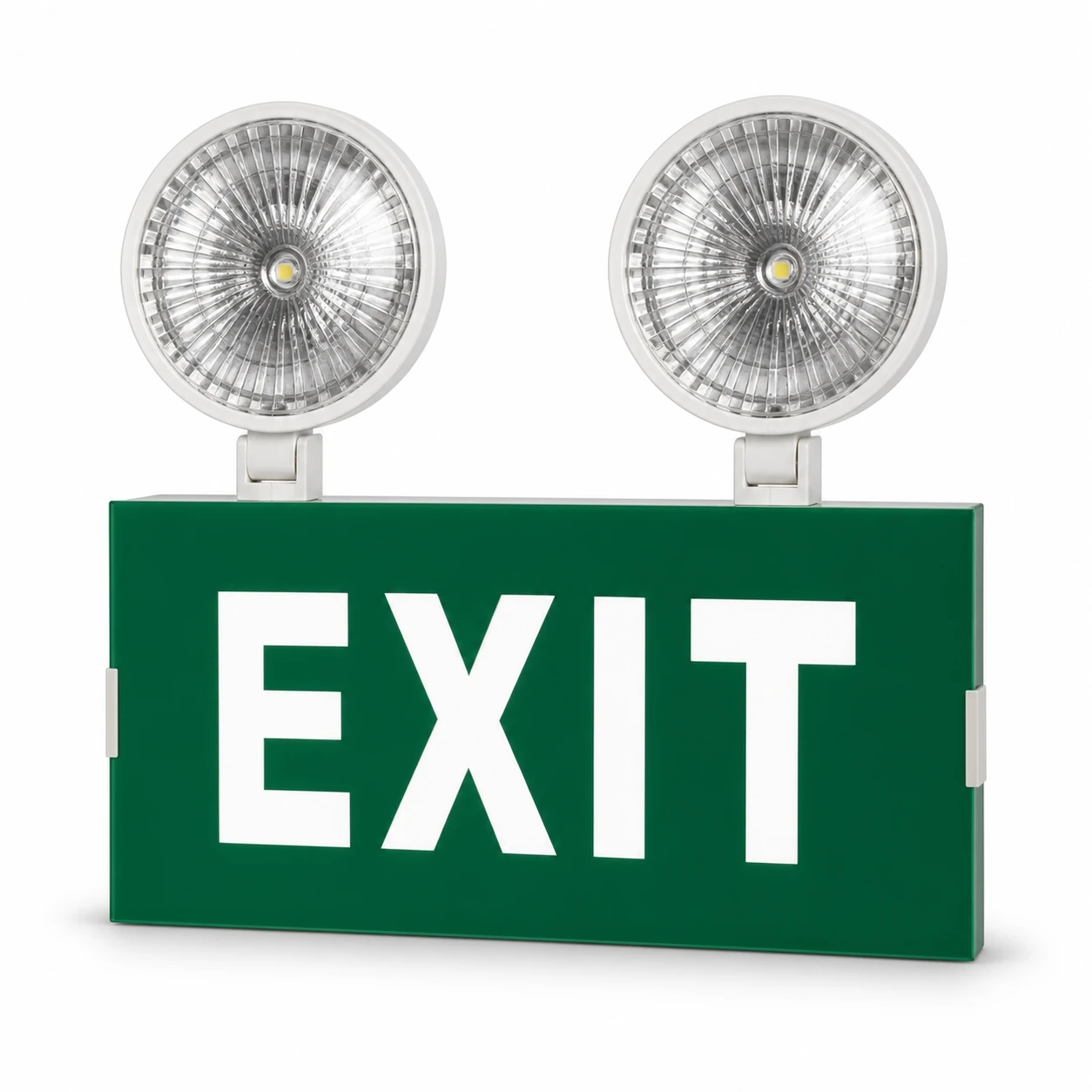

BX-FH020 Green Exit Sign with Twin Emergency Lights

The BX-FH020 green exit sign with twin emergency lights combines a green EXIT panel with two round lamps mounted above it. White EXIT lettering contrasts with the green face, while short brackets support the two circular lamp heads. This combination format gives electrical distributors and project buyers a distinct option when they need exit identification and emergency lighting in one product.

The supplier catalogue lists 3W power, 220V input and an emergency duration of at least 1.5 hours. Overall dimensions are 262 × 35 × 260 mm. These ratings distinguish BX-FH020 from the three-hour combination models elsewhere in the range. Buyers should match the selected model to the project schedule rather than assuming that all similar-looking exit signs share the same electrical specification.

Four Product Features

1. Green face with white EXIT lettering. The front panel uses a green background with large white English lettering. This appearance differs from white housings with coloured lettering, making the reference photograph particularly useful for project approval. Confirm the required sign format and viewing direction before ordering.
2. Two round lamps above the panel. The circular lamps are supported above the green sign by short mounting brackets. Their placement keeps the sign face visually separate from the lamp heads. Include the complete fixture height when assessing clearance near ceilings, door frames or existing electrical fittings.
3. At least 1.5 hours of emergency operation. The catalogue states an emergency time of 1.5 hours or longer. This is the published rating for BX-FH020; it should not be replaced with the three-hour claim used for other models. Review the supplied operating instructions for charging and test conditions.
4. 262 mm overall width. The stated dimensions are 262 mm wide, 35 mm deep and 260 mm high. These measurements help buyers compare the complete unit with the available space. A dimensional check is especially useful when replacing a larger sign or a fixture with side-mounted heads.

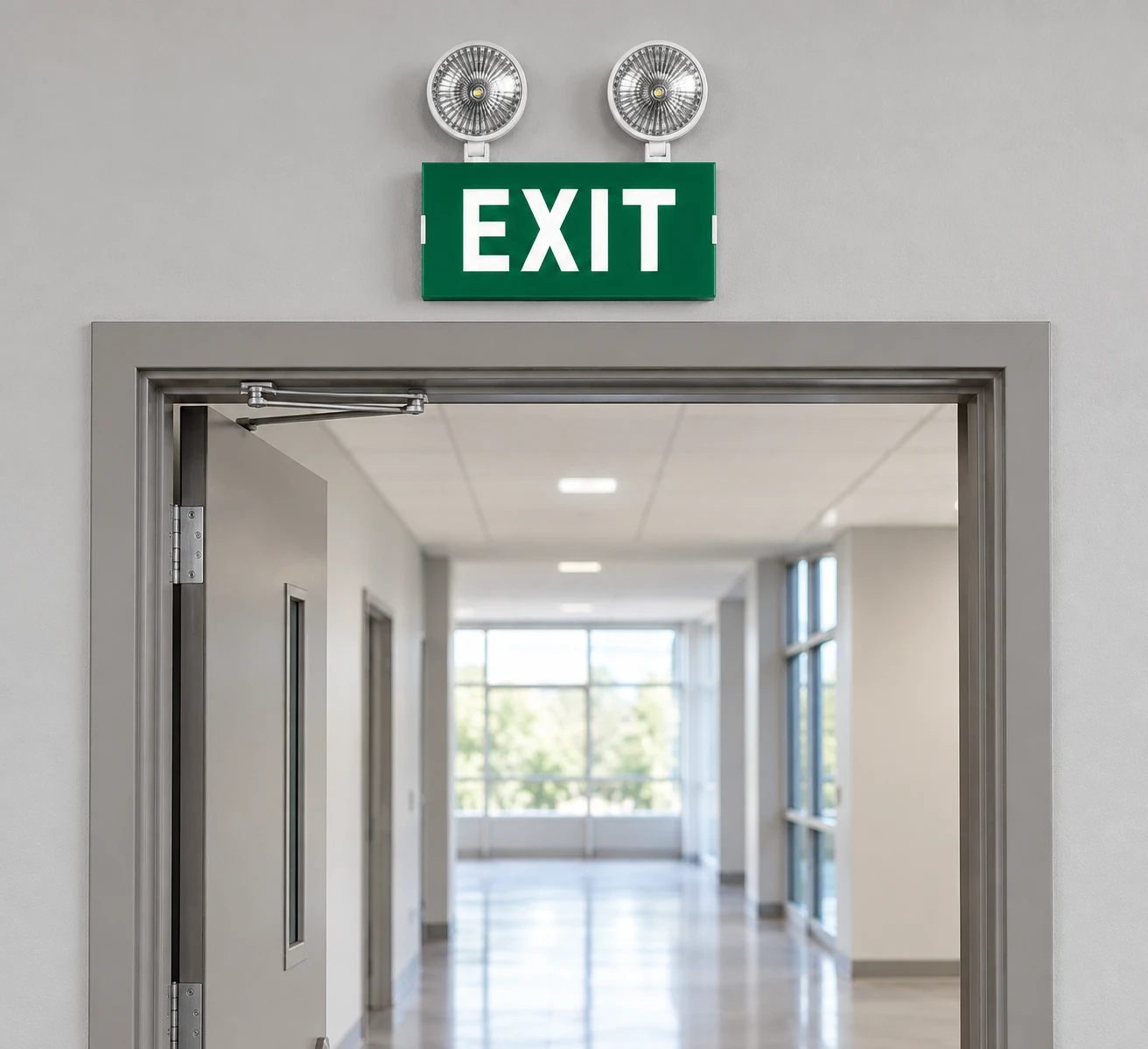

Commercial Doorway Application

Technical Specifications

Selecting the Right Combination for a Project

BX-FH020 can be considered for indoor commercial locations where the specified sign format is white EXIT lettering on a green face and the lighting design calls for an attached pair of emergency lamps. Relevant enquiries may involve office corridors, commercial back-of-house routes and doorway areas. Suitability depends on the required sign visibility, mounting position and emergency lighting design.

For refurbishment work, compare the existing sign format, electrical supply and backup requirement before choosing a replacement. A compact overall size does not establish compatibility with an existing mounting pattern. Ask for the installation information for the supplied version and have the responsible installer review the available position. This allows fit-related questions to be resolved before the product is ordered in quantity.

Electrical and Battery Information

BX-FH020 is listed with a 220V input. Do not treat this as the 85–265V range specified for some neighbouring catalogue models. Include the intended supply in the enquiry so the offered configuration can be checked against the project requirements.

The catalogue describes the battery as a 1.2V lithium battery. Battery chemistry and voltage for the supplied version require confirmation before purchase. The table preserves the catalogue wording rather than substituting an assumed battery type. Where battery details are part of a tender or maintenance specification, request the relevant product documentation with the quotation.

Procurement Details for Distributors and Contractors

Use the full model number BX-FH020 when requesting availability or pricing. Include the green panel with white lettering, the twin upper lamp arrangement and the stated backup duration in the enquiry. These details help distinguish this unit from other combination exit signs that may have a similar photograph but different electrical ratings or housing dimensions.

For orders covering several buildings, provide quantities by location and identify any differences in sign format or installation conditions. Discuss sample requirements, packaging and delivery destination at the quotation stage. If a project requires specific approvals, enclosure protection, photometric data or testing functions, request documentation for this exact model rather than inferring those features from its appearance.

Sample Review and Repeat Purchasing

Compare the sample with the approved product reference, paying attention to the green face, white lettering, lamp positions and bracket arrangement. Review the supplied installation and operating instructions before project acceptance. Record the agreed battery configuration and any accompanying documentation with the purchase order so the same requirements can be checked on repeat deliveries.

Common Purchasing Questions

Is BX-FH020 the same as the three-hour red EXIT models? No. It has a green sign face and is listed with 220V input and at least 1.5 hours of emergency operation. Specify each model separately when comparing quotations.

What should accompany a quotation request? Send your quantity, destination, required delivery date and intended application. Include any project documentation requirements and ask for confirmation of the battery specification when discussing the supplied version.

Request BX-FH020 Product Information

Contact Best Emergency Light for BX-FH020 sample and bulk supply enquiries. Share the project requirements and model reference to receive a product-specific response on the requested configuration.
