BX-S032 Twin-Head Emergency Light with 3-Hour Backup

BX-S032 Twin-Head Emergency Light for Commercial Interiors

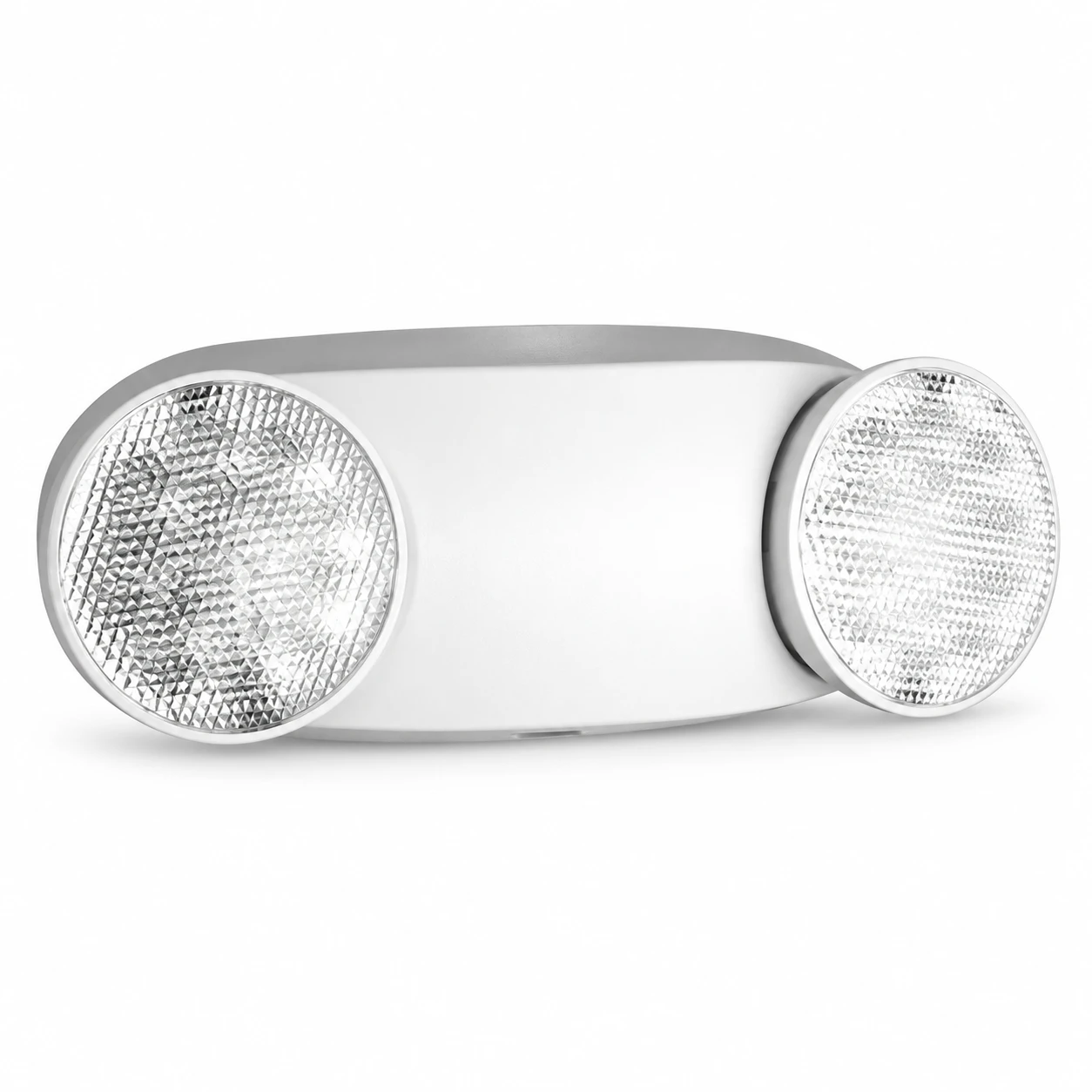

The BX-S032 twin-head emergency light combines two large circular lamp faces with a low, curved white housing. Positioned at opposite ends of the enclosure, the textured lamp lenses give this model a distinctive appearance compared with smaller spotlight-style emergency lights. The supplier catalogue lists 2 × 1.5W rated power, an 85–265V input range, a 3.7V/1800mAh battery and three hours of emergency operation. These specifications provide distributors, electrical contractors and commercial project buyers with a clear starting point for quotation requests and product evaluation.

Four Key Product Features

1. Two large circular lamp faces. BX-S032 has textured circular lenses positioned at the two ends of its central housing. This arrangement creates a recognizable twin-head format without upper lamp stalks or a separate carrying handle. Request available lighting data when evaluating the unit, as lens appearance alone does not establish beam distribution or floor-level illumination.
2. Three-hour rated emergency duration. The catalogue lists three hours of backup operation. Buyers can use this figure when comparing products against a project’s emergency-lighting schedule. Confirm the supplied battery configuration, charging instructions and runtime conditions before approving a sample or including the rating in purchasing documentation.
3. 2 × 1.5W electrical configuration. The model entry specifies two 1.5W lamps and an 85–265V input range. Include the destination supply conditions in your enquiry so the proposed configuration can be checked. Frequency, connection arrangements and included accessories should be confirmed through the order-specific technical information.
4. Low-profile curved enclosure. Listed dimensions are 290 × 68 × 107 mm. The plain white center and rounded outline provide a straightforward appearance for commercial interiors. Check the dimensional drawing, fixing arrangement and service access before finalizing mounting positions or evaluating the unit as a replacement for an existing fitting.

Technical Specifications

Specifications follow the supplier catalogue. Confirm the final configuration, included accessories and installation documentation before purchase.

Wall-Mounted Commercial Application

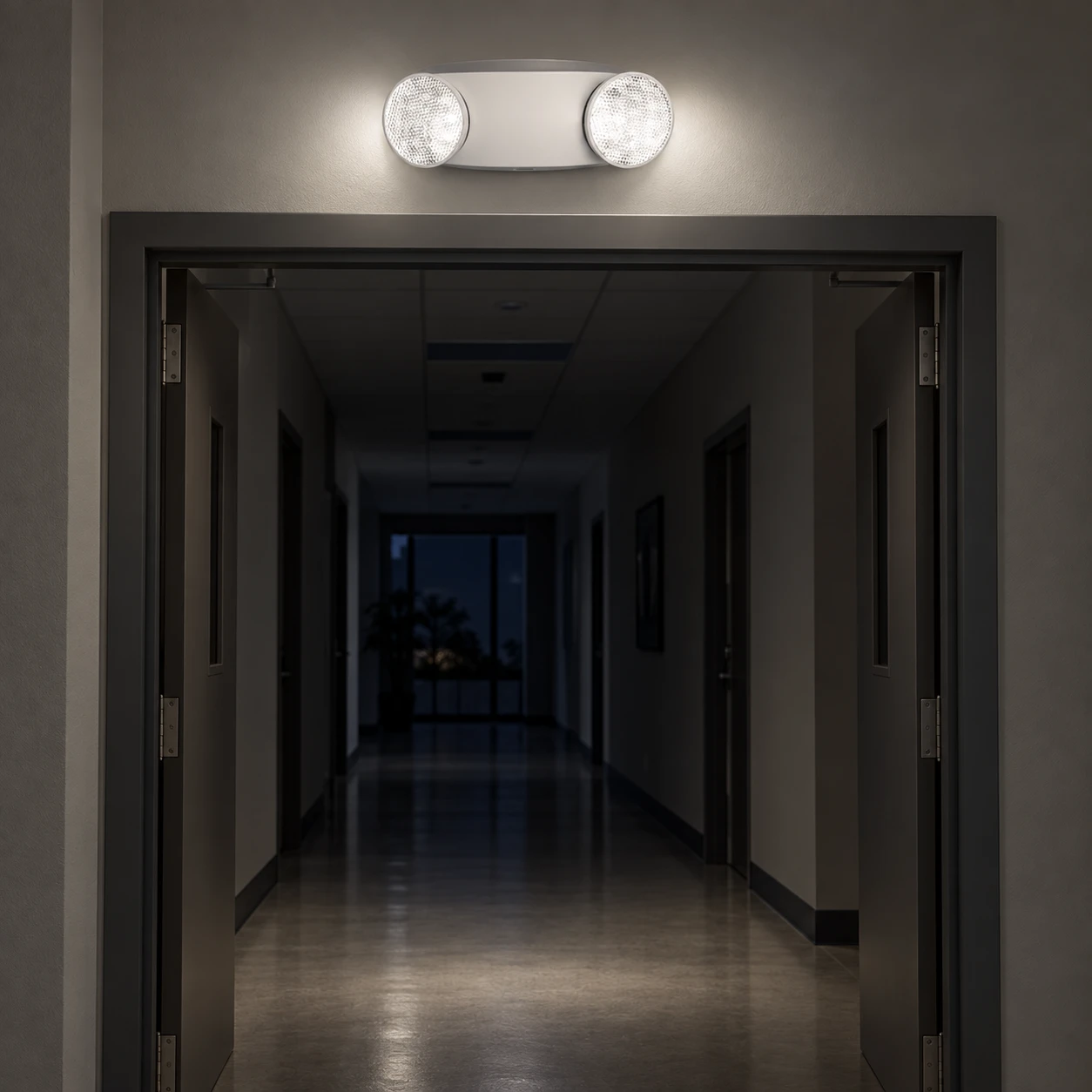

Consider BX-S032 when reviewing backup illumination for commercial corridors, circulation areas and other indoor locations identified by the project designer. Wall mounting can position the unit clear of the walking route, subject to appropriate fixings and the manufacturer’s instructions. The final mounting height and spacing should be determined using the building layout, required lighting levels and available product data.

This product provides illumination rather than an illuminated EXIT message. Where escape-direction identification is required, specify suitable signs separately and coordinate both elements within the emergency-lighting plan. The catalogue does not provide an ingress-protection rating for BX-S032, so exposed outdoor locations, washdown areas and damp environments should not be assumed suitable.

Purchasing Information for Trade Buyers

Include BX-S032, your required quantity, destination country and documentation needs when requesting a quotation. If you are working from a lighting schedule or evaluating a replacement fitting, provide the relevant dimensions and electrical requirements. This helps identify which details need confirmation before the proposed product is approved for supply.

For repeat orders, retain the approved sample details with the quotation. Check housing dimensions, lamp appearance, battery specification, supplied accessories and packaging so subsequent deliveries can be compared consistently. Request current availability and delivery arrangements at the enquiry stage. If specific approvals or test reports are required, ask for supporting documents identifying the exact model.

Frequently Asked Buyer Questions

How does BX-S032 differ from BX-S031? BX-S032 uses large textured circular lamp faces at the ends of a curved housing, while BX-S031 has smaller front-mounted spotlight heads. BX-S032 also has different listed dimensions, so the two products should not be treated as physically interchangeable.

Is the battery chemistry specified? The catalogue gives 3.7V/1800mAh without naming the chemistry. Request the complete battery specification and replacement guidance when preparing purchasing, shipping or maintenance documentation.

Can coverage be determined from rated power? No. Obtain available photometric information and review the proposed layout against the actual space. The catalogue entry does not establish a coverage distance or a measured illumination level.

What documents should accompany project handover? Request operating instructions, charging guidance and recommended test procedures. Installation, commissioning and maintenance should be undertaken by appropriately qualified personnel using the supplied documentation and applicable project requirements.

Request a BX-S032 Quotation

Send your quantity, destination, sample needs and technical requirements to request BX-S032 pricing and product details. Include the relevant purchasing schedule where available. Confirm the final configuration, documentation, availability and delivery arrangements before approving bulk supply for your commercial project or distribution range.
