BX-S031 Twin-Head Emergency Light with 3-Hour Backup

BX-S031 Twin-Head Emergency Light for Commercial Interiors

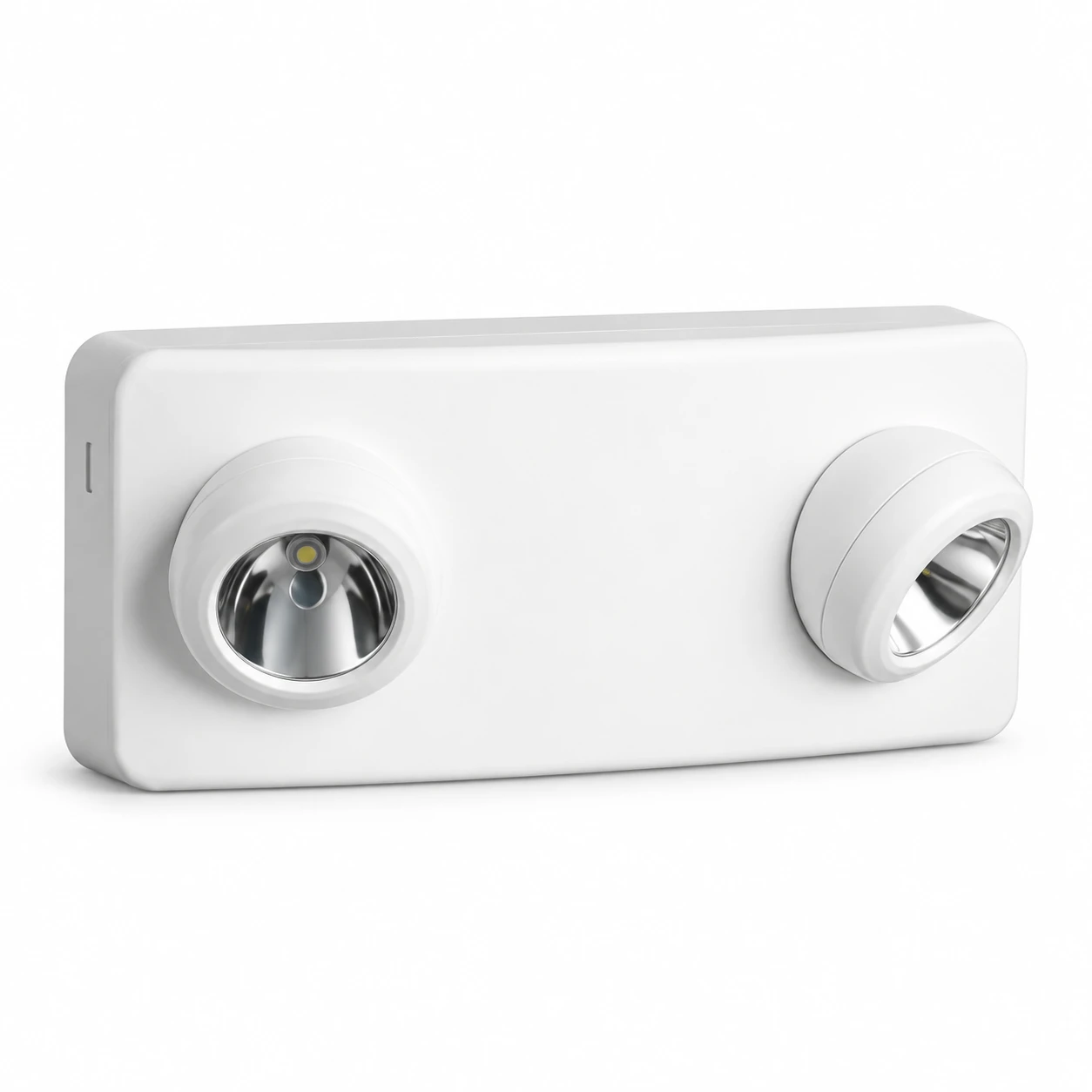

The BX-S031 twin-head emergency light combines two compact, front-mounted lamp heads with a clean white rectangular enclosure. Unlike models with lamps positioned above a separate cabinet, its circular heads sit directly on the front of the housing, creating a compact overall profile. The supplier catalogue lists 2 × 1.5W rated power, an 85–265V input range, a 3.7V/1800mAh battery and three hours of emergency operation. These specifications provide a starting point for distributors, electrical contractors and commercial project buyers evaluating backup-lighting options.

Four Key Product Features

1. Integrated twin-head configuration. Two circular reflector lamps are positioned on the front of the enclosure. This gives BX-S031 a different form from emergency lights with projecting upper lamp supports. The catalogue photograph shows the heads facing different directions; confirm the available aiming movement and installation instructions before specifying the final lamp positions.
2. Three-hour rated emergency operation. The listed backup duration is three hours. Buyers can use this figure when comparing emergency-lighting requirements across a project schedule. Confirm the supplied battery configuration, charging instructions and runtime conditions before approving a sample or including the rating in purchasing documentation.
3. 2 × 1.5W rated power. The catalogue identifies two 1.5W lamps together with an 85–265V input range. These electrical specifications help distinguish the model during quotation review. Lighting coverage should be evaluated using available output and distribution information, as wattage alone does not establish the illumination delivered to a walking surface.
4. Compact white housing. Listed dimensions are 260 × 78 × 120 mm. Rounded edges and a plain front give the unit a straightforward appearance for commercial interiors. Check the dimensional drawing, fixing arrangement and required access space before finalizing installation locations or comparing the product with an existing fitting.

Technical Specifications

Specifications follow the supplier catalogue. Confirm the final configuration, installation details and included accessories before purchase.

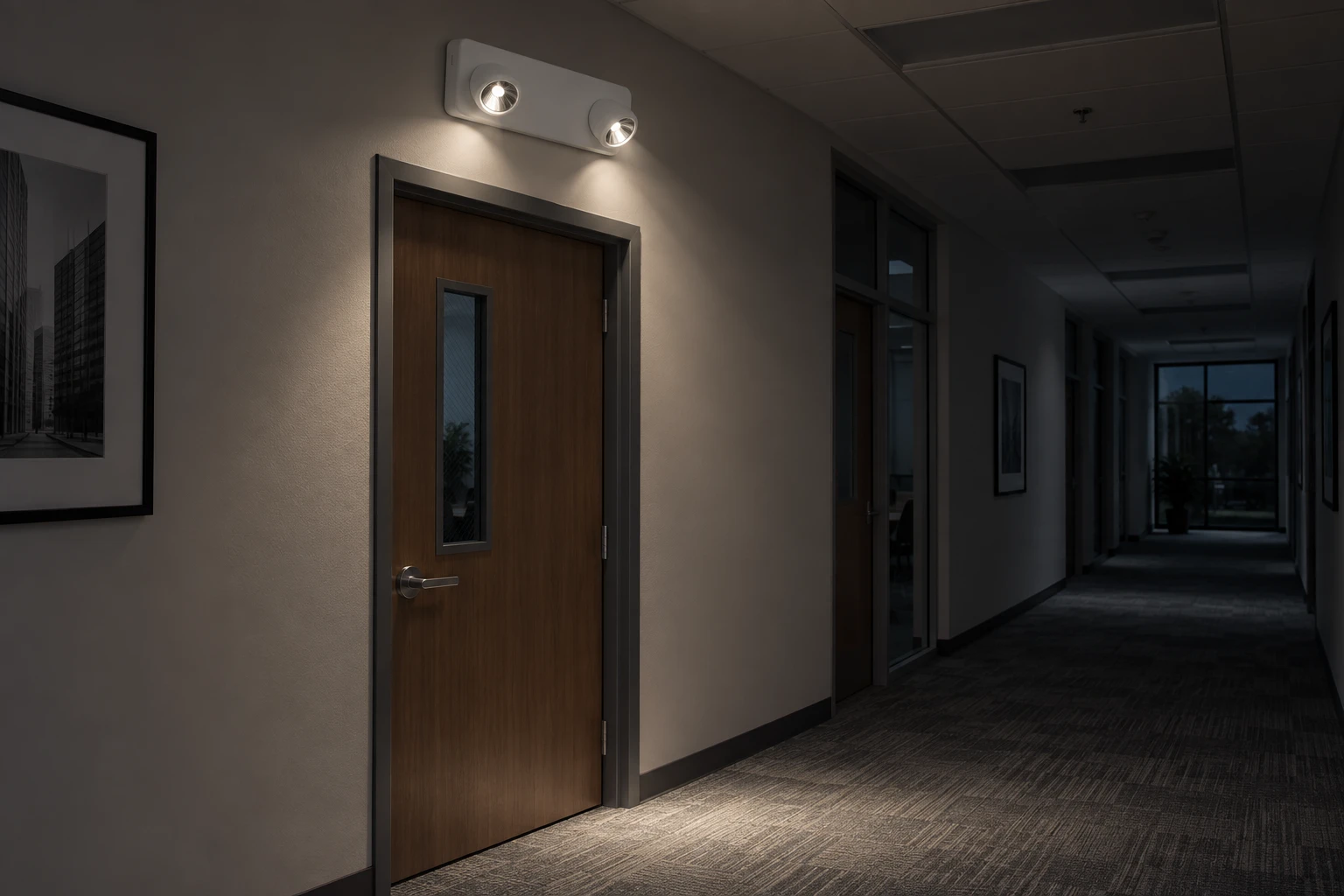

Commercial Corridor Application

Consider BX-S031 when evaluating backup illumination for commercial corridors, circulation areas and other indoor locations identified in the project design. Its compact front-mounted lamp arrangement offers a different physical format from larger twin-head units. The project designer should assess placement using the actual route layout, mounting conditions and available lighting data rather than relying on the application photograph.

This unit provides illumination rather than an illuminated EXIT message. Where escape-direction identification is required, specify suitable signs separately. The catalogue does not provide an ingress-protection rating for BX-S031, so exposed outdoor locations, washdown areas and damp environments should not be assumed suitable without further product documentation.

Purchasing Information for Trade Buyers

Include BX-S031, the required quantity, destination country and any project-specific documentation needs when requesting a quotation. If you are comparing replacement fittings, provide the existing installation dimensions and relevant electrical requirements. This helps identify which details need confirmation before a sample is approved or an order is placed.

For repeat procurement, retain the approved sample details with the quotation. Check lamp appearance, housing dimensions, battery specification, supplied accessories and packaging so subsequent deliveries can be compared consistently. Request current availability and delivery arrangements at the enquiry stage. Any required approvals or test reports should identify the specific model rather than being inferred from general catalogue symbols.

Frequently Asked Buyer Questions

What makes BX-S031 different from other twin-head models? Its two circular lamp heads are integrated into the front of a low rectangular housing instead of being mounted on stalks above a cabinet. Confirm the physical arrangement against your available installation space.

Is the battery chemistry listed? The catalogue specifies 3.7V/1800mAh without identifying the chemistry. Request the complete battery specification and replacement guidance where required for purchasing, shipping or maintenance documentation.

Can the lighting coverage be determined from the power rating? No. Request available photometric information and review the proposed mounting height and layout against the intended space. The catalogue entry does not establish a coverage distance or measured floor-level illumination.

What documentation is useful for handover? Ask for operating instructions, charging guidance and recommended test procedures. Installation, commissioning and maintenance should be undertaken by appropriately qualified personnel using the supplied instructions and applicable project requirements.

Request a BX-S031 Quotation

Send your quantity, destination, sample needs and technical requirements to request BX-S031 pricing and product details. Include the relevant lighting schedule or reference specification where available. Confirm the final configuration, documentation and delivery arrangements before approving bulk supply for your commercial project or distribution range.
