BX-S024 Twin-Head Emergency Light with 3-Hour Backup

BX-S024 Twin-Head Emergency Light for Commercial Projects

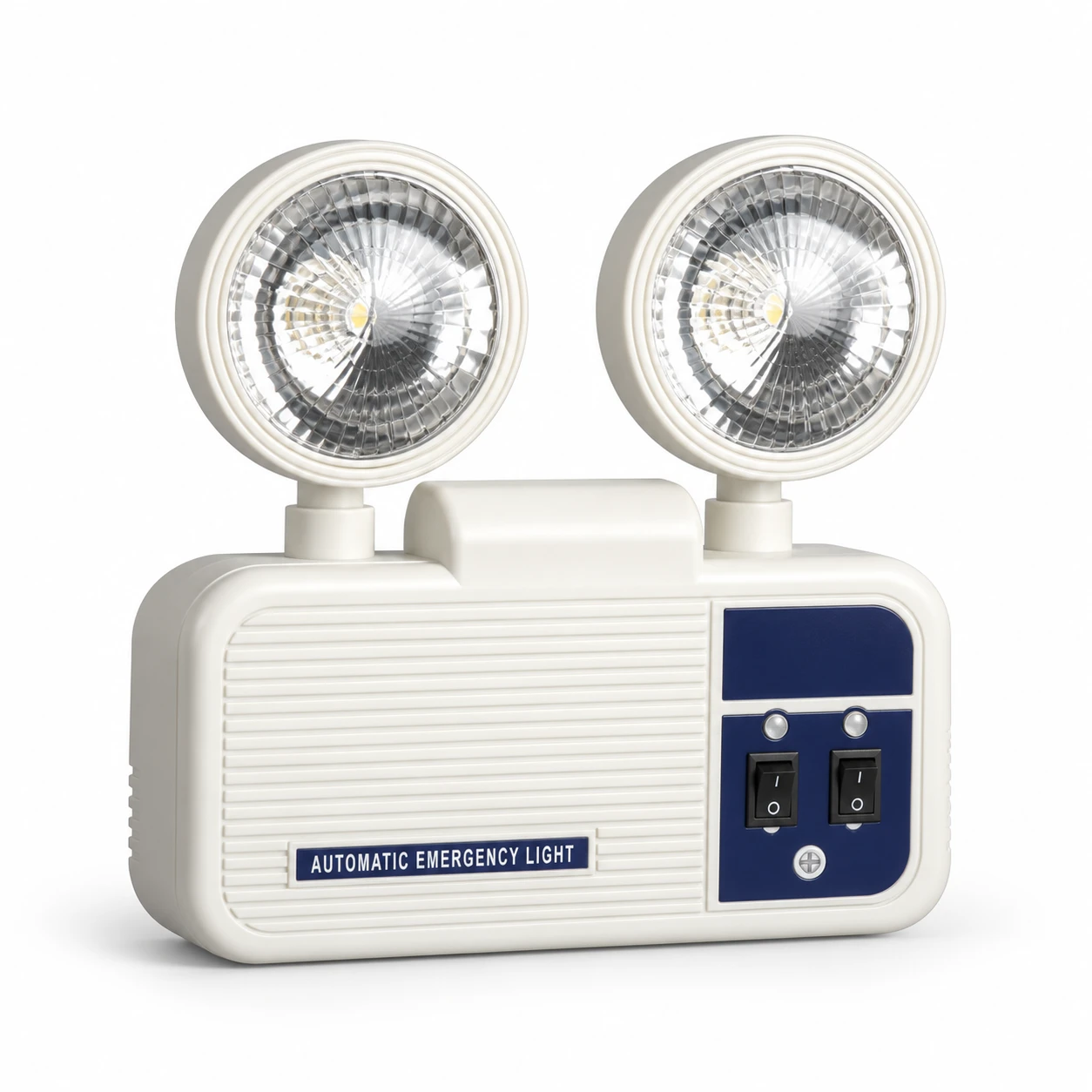

The BX-S024 twin-head emergency light combines two circular reflector lamps with a compact, rounded rectangular cabinet. Its distinctive horizontal front ribs and dark blue control panel make this model easy to identify when reviewing samples or preparing a purchasing schedule. The supplier catalogue lists two 1.5W lamps, an 85–265V input range, a 3.7V/1800mAh battery and three hours of emergency operation. For electrical distributors, contractors and commercial project buyers, these specifications provide a clear starting point for selecting and discussing the required supply.

Four Key Product Features

1. Two 1.5W lamp heads. The BX-S024 uses a twin-head configuration with a catalogue rating of 2 × 1.5W. Two circular reflector assemblies sit above the main enclosure. When preparing a lighting layout, request the available output and distribution information so the proposed coverage can be evaluated for the actual space rather than inferred from wattage alone.
2. Three-hour rated emergency duration. The published backup time is three hours. This is a useful comparison point for buyers evaluating different emergency-light models. Confirm the supplied configuration, charging requirements and runtime test conditions before including the rating in a project submission or approving a sample for bulk procurement.
3. 85–265V input and 1800mAh battery. The catalogue gives an input range of 85–265V and a battery specification of 3.7V/1800mAh. Include the destination electrical supply in your enquiry and ask for the operating instructions. The battery chemistry is not stated in the entry, so request the exact battery details where these are needed for purchasing or maintenance.
4. Compact ribbed enclosure. Listed dimensions are 270 × 65 × 265 mm. The light-colored cabinet, rounded corners and contrasting dark blue panel distinguish BX-S024 from other twin-head products in the range. Check the dimensional drawing and installation arrangement before allocating space, choosing accessories or finalizing a project schedule.

Technical Specifications

Figures follow the supplier catalogue. Confirm the order-specific datasheet, included accessories and operating instructions before purchase.

Planning Commercial Backup Lighting

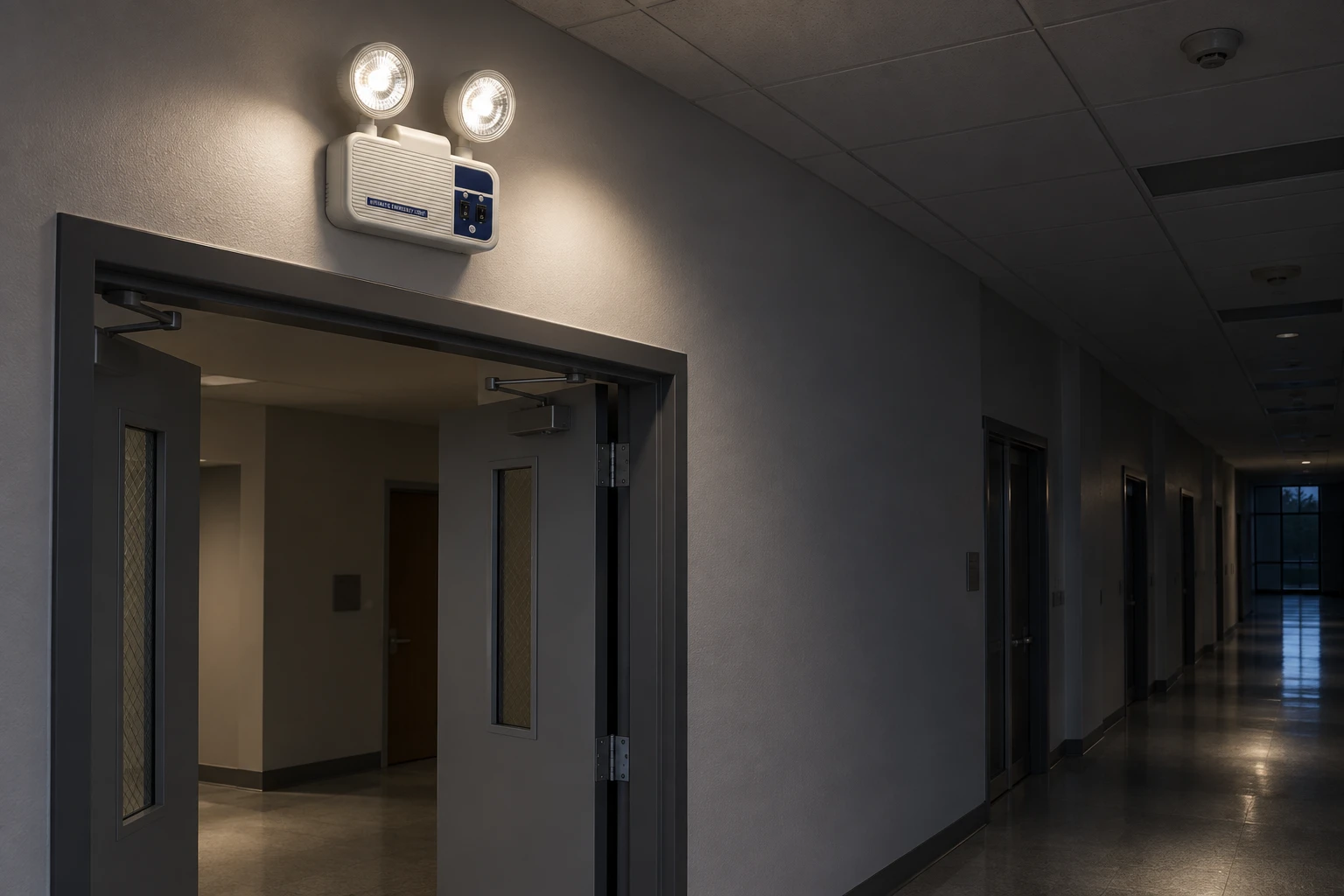

Consider the BX-S024 when reviewing backup-lighting options for indoor commercial spaces. A project designer should determine suitable locations using the building layout, required illumination levels and available product data. This unit provides lighting rather than an illuminated EXIT message. Where a project also needs escape-direction identification, select the appropriate signs separately and coordinate both elements within the overall lighting plan.

The catalogue does not specify an ingress-protection rating for BX-S024, so exposed outdoor locations, washdown areas and damp environments should not be assumed suitable. Ask for the manufacturer’s installation guidance before selecting fixings or connection accessories. Electrical installation, commissioning and testing should be completed by appropriately qualified personnel in accordance with the supplied instructions and the requirements of the project.

A Clear Specification for Trade Enquiries

Using the model number in your enquiry helps distinguish BX-S024 from similar-looking emergency lights. Include the required quantity, destination country and any documentation requested by your customer. A reference photograph or purchasing schedule can help clarify the intended product, particularly when several twin-head models are being compared within the same order.

For repeat supply, confirm the approved sample and keep its details with the quotation. Useful checkpoints include the front-panel layout, lamp appearance, battery specification, cabinet dimensions and packaging information. Ask about availability, sample arrangements and delivery timing when requesting pricing. If your project requires specific approvals, request model-specific supporting documents for review before treating the product as compliant with that requirement.

Frequently Asked Buyer Questions

What distinguishes BX-S024 from BX-S022/S023? Its catalogue entry lists a 3.7V/1800mAh battery and dimensions of 270 × 65 × 265 mm, alongside a visibly different ribbed cabinet and blue front panel. Use the model-specific entry rather than transferring specifications from neighboring products.

Does rated power establish lighting coverage? No. Power alone does not determine the illumination achieved at a particular distance. Request available photometric information and have the proposed placement reviewed for the intended space.

What maintenance information should be requested? Ask for charging instructions, the recommended test procedure and the replacement-battery specification. Retain these documents with the handover records so the supplied units can be identified and maintained consistently.

Request a BX-S024 Quotation

Send your BX-S024 quantity, destination and project requirements to request pricing and product details. Include any sample or documentation needs with the enquiry so the proposed supply can be checked before ordering. Confirm the final configuration and delivery arrangements before approving bulk procurement.
