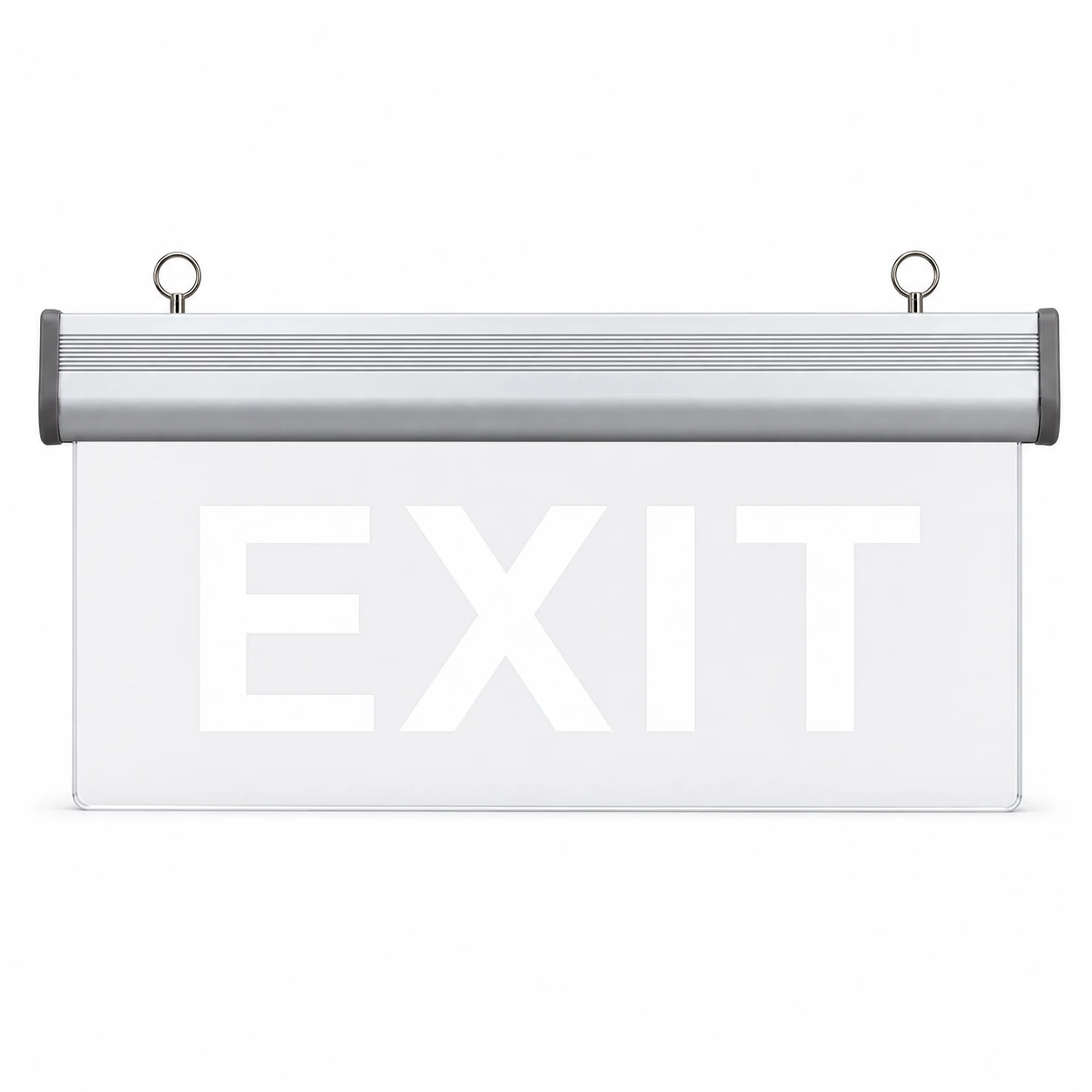

BX-B009 Aluminum Alloy Hanging LED Exit Sign with 3-Hour Backup

Aluminum alloy hanging LED exit sign BX-B009 combines a slim silver light housing with a clear edge-lit acrylic legend panel for modern commercial interiors. The suspended design keeps the emergency exit message visible from a distance without the visual weight of a large box sign. Rated at 3W with AC85-265V input, a 1.2V 800mAh battery and three hours of emergency operation, it is designed for B2B buyers seeking a compact architectural sign for hotels, offices, retail spaces and public-building projects.

Architectural Suspended Exit Identification

BX-B009 uses a horizontal aluminum alloy lighting section above a vertical clear acrylic panel. Two suspension points on the top of the housing allow the assembly to hang below the ceiling, placing the legend in the normal line of sight while keeping the fixture visually light. The catalog shows both an EXIT-letter panel and a directional pictogram panel, indicating that legend selection can be discussed for project requirements. Artwork availability, viewing direction and single- or double-sided visibility should be confirmed before ordering.

The edge-lit format is well suited to interiors where a traditional plastic box sign would appear too bulky. It can coordinate with metal door frames, hotel finishes, office ceilings and retail architecture while still performing an essential egress-identification function. The final installation height and orientation must follow the approved evacuation plan so the legend remains visible from the required approach direction.

Technical Specifications

Where BX-B009 Fits Best

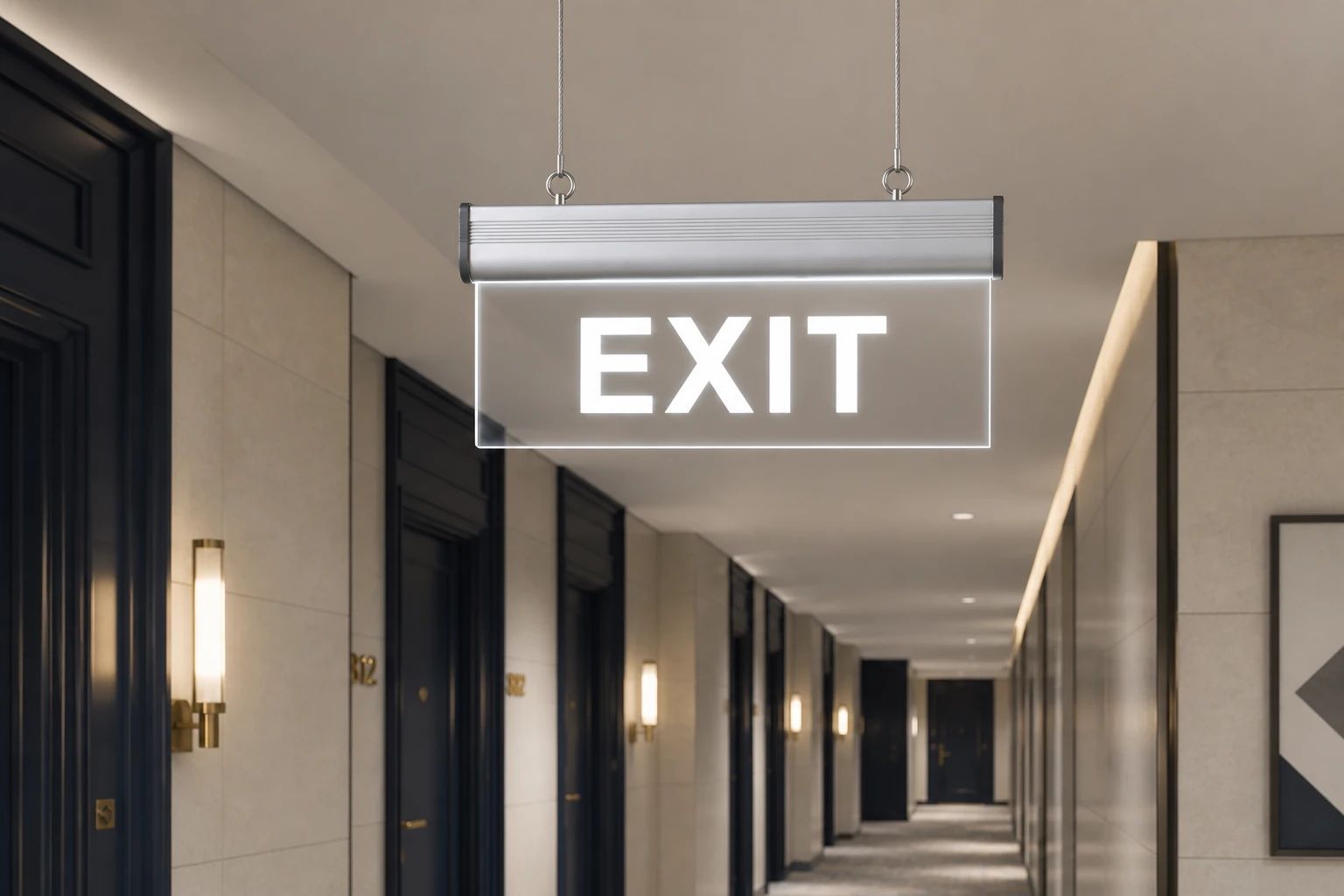

Typical applications include hotel corridors and lobbies, office buildings, shopping centers, restaurants, cinemas, schools, hospitals, reception areas and other commercial spaces where appearance and safety signage must work together. The hanging format is useful at corridor intersections, open-plan areas and door approaches where a wall-mounted sign may not be visible from both directions. Designers can evaluate the clear panel against the background finish to ensure adequate contrast in both normal and emergency conditions.

Project Configuration and OEM Support

For a B2B quotation, buyers should specify the required legend, arrow direction, panel language, viewing sides, suspension length, order quantity and destination market. The standard catalog information describes a 3W unit with a 1.2V 800mAh battery and a three-hour emergency duration. Any custom graphics, alternative accessories, cable lengths, packaging, markings or documentation need written confirmation for the actual order.

A pre-production sample is recommended before bulk purchasing. The sample allows the contractor, distributor or luminaire brand to check panel artwork, illuminated appearance, housing finish, suspension balance, installation dimensions, charging behavior and emergency runtime. If the sign is part of a tender, the approved sample and specification can serve as a common reference for production inspection and site acceptance.

Installation and Maintenance Guidance

Installation should be completed by qualified personnel using fixings and suspension components suitable for the ceiling structure. The two suspension points must share the load evenly so the aluminum housing and acrylic panel remain level. Electrical connections should be enclosed and the sign should not obstruct doors, sprinklers or other building services. Final height, spacing and legend direction must comply with the project drawings and applicable local emergency-lighting rules.

After installation, simulate a mains failure to confirm emergency changeover and legend visibility. Periodic inspections should check the suspension hardware, acrylic panel, housing, charging condition and battery-backed operating time. Ambient temperature, battery age and maintenance history can affect performance, so test records should be retained according to the facility’s safety procedure.

Bulk Procurement Planning

For phased hotel or office projects, purchasers may schedule deliveries by floor or construction stage and include a small quantity of spare units or panels for maintenance support. Confirming artwork early is especially important because a visually similar panel can communicate a different escape direction. Before production, approve the legend file, housing finish, suspension accessories, carton marking and inspection checklist. Certifications or local compliance documents should be requested specifically and verified for the ordered configuration rather than assumed from a catalog image.
